Plate Material Tensile Testing Machine , Flat Specimen Tensile Tester With Wedge, Rotary Clamp

  • 1
  • 2

Brand Name : POOTAB / PERFECT

Model Number : PT-1166

Certification : ISO9001, CE. SGS

Place of Origin : Dongguan ,Guangdong , China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 150 sets per month

Delivery Time : 15 working days afer confirm order

Packaging Details : Wooden Case

Item : Dual Column UTM

Max Force Hold : 20KN, 2T, 2000kgf

Test Travel : 1000mm ( could be lengthened)

Effective Measurement Range : 420mm, ( left-right), front-back no limit

Motor : AC Servo Motor

Test Content : Tensile Strength, breaking force, elongation, peel, compression, tear,shear,etc

Contact Now

Plate Material Tensile Testing Machine , Flat Specimen Tensile Tester With Wedge Grip , Rotary Clamp



Overview :

This double arm universal testing machine is widely used in lots of fields, such as, wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for testing of tensile strength, tear resistance, peel strength, 3 point bend strength, shear force , stripping, compression, 4 point bending testing, ect with different fixtures.



Specifications :

Product Name Plate Material Tensile Testing Machine , Flat Specimen Tensile Tester With Wedge, Rotary Clamp
Model No. PT-1166
Capacity Option 2,5,10,20,50,100,200,500,1000,2000kgf ,any one option,Max 2T
Software software Windows platform, meet WINDOWS XP, WIN 7, 8, 9, 10,  core at least above I3, I5
Accuracy of measurement ±0.5%
Test speed 0.5~500mm/min ( 1000mm/min, customized)
Test Travel Max 1000mm, not including grip
Effective test space About 400mm (Left- Right)
Unit switch A variety of measurement units, including international units, users can also customize the required units
Stop mode Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special function tension, holding pressure and fatigue test, etc
Optional configuration Business computer 1, 1 color printer, PT-211 two points to extend the fixture, a variety of test fixture
machine Size 76×46×160cm(W×D×H)
weight About 165kg, package weight about 190 kg
Motor AC servo motor
Power Supply 1PH,AC 220V,50/60Hz Or as requested by clients





Optional Purchase Configuration :

  • Computer (customers could use their own computer, we provide testing software to install, or you could buy computer from our company.)
  • Printer
  • Diffierent grips: tensile grip, compress plate, tear grip, bend flex grip, peel grip, 3 point bend grip, etc

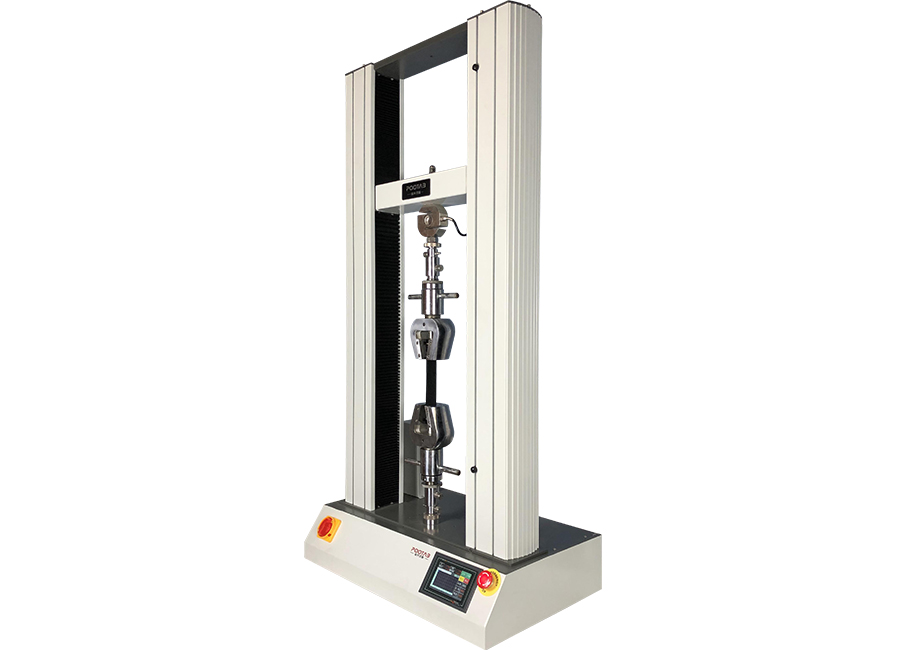

Pic :





Plate Material Tensile Testing Machine , Flat Specimen Tensile Tester With Wedge, Rotary Clamp
